Ever since I have been involved with programming I have heard a lot about Containers, how important, handy, efficient they are; How important they are to the CI/CD workflow and the health/development cycle of an application, etc… But they also has always been a big question-mark to me: I could never explain consistently what they really are.

I have heard they are boxes, but Why we need them? What they are made of? How are they made? Where are they built? Why they need a Linux environment in order to work? To answer these questions is my ultimate goal with this article. So we begin:

The Why #

The core idea of containerization specially on the software quality matter came with the specific issues of environment disparity, also known as the ‘but on my machine is working!’ problem.

To Containerize something means to use Kernel environment-specific tools, even if they the tool is a wrapper around these Kernel-tools, in order to create new environments with a specific fine-grained setup; What includes control over CPU, Memory, Permissions, Network, File System among others. This way we automatically get a ‘work-on-all-linux-environments’ box which has control of some important behaviors of our application.

This box (following the Open-Container Initiative) is essentially a pack of folders and files with a config.json file (more on that later), which generally comes in a GZip/Tar encoded format (.tar.gz), which is organized and runned by a runtime like Docker. Which is the next matter we will be focusing on.

Runtimes #

A runtime is the program which gets our box, also known as an Image, unpacks it and executes the required actions. But what are these ‘actions’? They are essentially all the runtime can perform in order to correctly setup all the environment, but you must be wondering to yourself: How the container knows what need to be done? And I answer you: Bundle Files.

Bundle Files #

These files act like a receipt to the runtime. This receipts follow a pattern known as OCI, from the Open-Container Initiative. It looks like this:

{
  "ociVersion": "1.0.2-dev",
  "root": {
    "path": "/home/user/target-folder/alpine-latest/rootfs",
    "readonly": false
  },
  "mounts": [
    {
      "destination": "/proc",
      "type": "proc",
      "source": "proc"
    },
    {
      "destination": "/dev",
      "type": "tmpfs",
      "source": "tmpfs",
      "options": [
        "nosuid",
        "strictatime",
        "mode=755",
        "size=65536k"
      ]
    },
  ],
  "process": {
    "args": [
      "/bin/sh"
    ],
    "env": [
      "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"
    ],
    "capabilities": {
      "bounding": [
        "CAP_AUDIT_WRITE",
        "CAP_NET_BIND_SERVICE",
        "CAP_KILL"
      ],
    },
  },
  "hostname": "alpine-latest",
  "linux": {
    "namespaces": [
      {
        "type": "pid"
      },
      {
        "type": "cgroup"
      }
    ],
  }
}

The file is way bigger, because of that I cut several parts of it. The Bundle File is just a .json file which is created on the Client to obtain the layers of the image. It dictates the rules and actions the Runtime must follow in order to set the container up. But hold up. Which Client? Well, it happens that a runtime like Docker is not a single thing, it consists of several moving parts. The Docker we interact with is the Docker CLI, basically the Front-End, the Client of all operations.

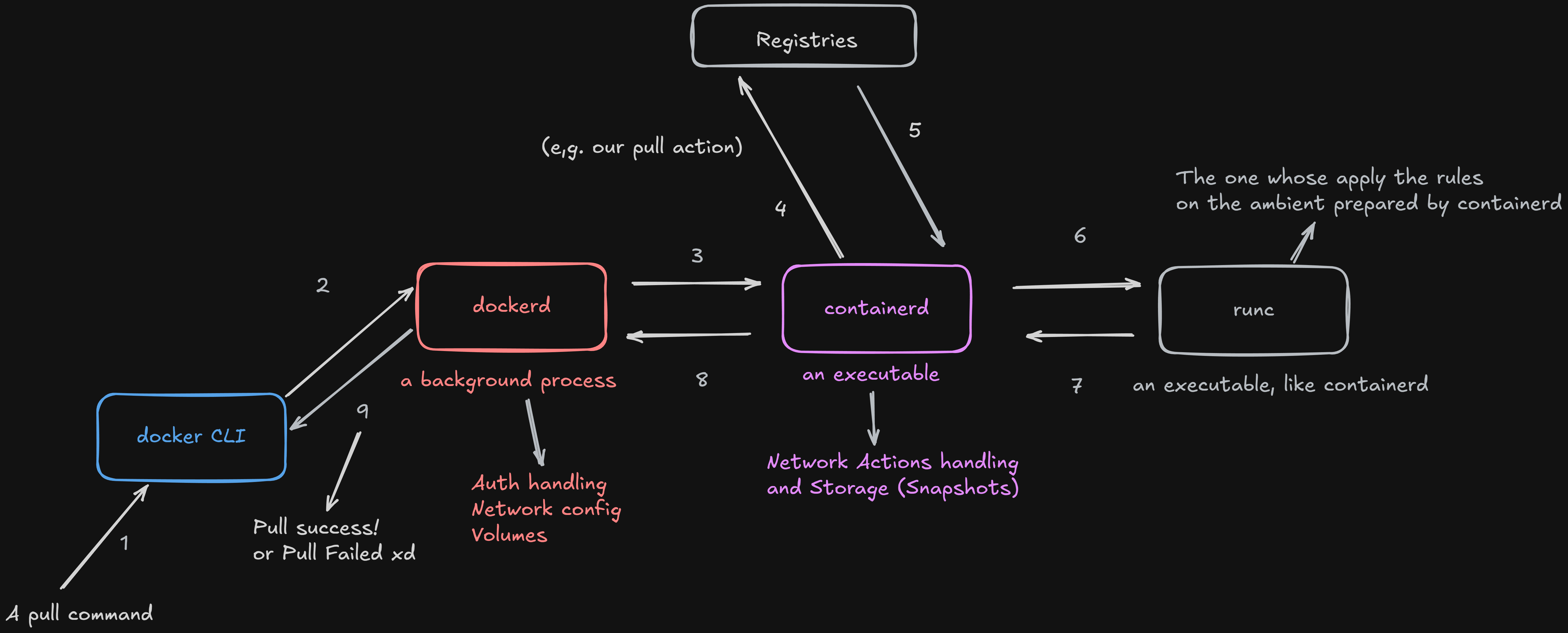

The one who does the heavy-work is (by default) dockerd. dockerd is a Daemon, a background continuous process which communicates with the client, which for itself uses the real runtime: containerd a executable which itself uses other executable, runc. You can even verify it’s existences running which dockerd and which runc on your Docker-enabled env. Wow… But I want to keep this article scope not too deep into these internal implementation details, instead, I want to show you the big picture of what is really happening, which is pretty simple on reality:

docker-view

One pretty thing about Containers is that they do not necessarily need internet connection in order to run, what makes it suitable to be runned on a lot of different situations, and as all the Containers runs essentially on Linux environments, we can simply execute this image on every compatible Kernel environment with the Image’s target architecture.

The What #

Ok, control over the environment, Bundle Files, Clients, _Daemons_👹, Runtimes… That’s cool, but we still haven’t seen the real face, the one which is really isolated, the piece that the runtime construct the environment around it… And here is it:

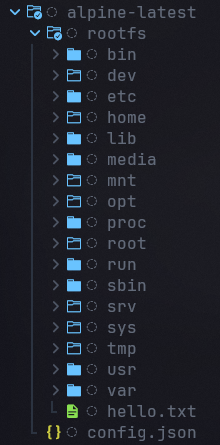

alpine folder

This is the mount point of the environment, where the Runtime will create the environment. It happens that this environment we’ve been talking a while is just a Process, yep, that’s what docker ps shows something running. And here is the catch: The Runtime isolates a specific Process which is mounted on the top of this rootfs folder, our Image.

This Process is fooled to think that the environment the runtime created to it is the real environment; The runtime puts the Process on a blind state, mounting the rootfs and isolating the rest of the computer to it, so it just sees the ‘rootfs folder’.

If you are a good observer you will notice that there is also a config.json file present on the folder, aside of rootfs. This file is another specification to the runtime, but is mainly has these four specs:

{
  "Cmd": [
    "/bin/sh"
  ],
  "Entrypoint": null,
  "Env": [
    "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"
  ],
  "WorkingDir": "/"
}

Here is valid to explain some fields:

  • Cmd: The default argument passed to Entrypoint.
  • Entrypoint: The path of an executable or binary (like the NGINX one!).
  • Env: Key/Value pairs loaded into the Environment.
  • WorkingDir: Where the ‘cwd’ will be.

This specific notation is a specification to what (the binary) and how the container will be initialized without a command the user gives to it; Like a NGINX Image, where docker exec initialize the NGINX executable. This way is easy to visualize how the runtime handles the start action of the container, nice (!!)

The How #

Now it’s time to understand the mechanisms the Kernel offers to us in order to deal with this isolation as well as how they are used. Every tool used to isolate an environment is a corollary of some tool the Kernel already expose to us. To isolate means use a broad number of them in order to bind the Container Process. Let’s see examples of them:

Namespaces #

Namespaces are options you can pass to a fn clone() -> PID syscall (creates a new process, our Container in this case) which modifies the shape of that final process the Kernel will create for us. No need to worry about this syscall, it is pretty much it: If you don’t pass any flags, the cloned process will be exactly as the same as the proccess which spawned it, simple as that. Some flags include:

  • NEWNS: A isolates mount points. Basically a detaches the parent process filesystem from the cloned one.
  • NEWUTS: A new hostname and NIS Domain name; This allows the container to its own name (e,g. web-server).
  • NEWIPC: A new IPC channel. Processes in different IPC namespaces cannot “talk” via shared memory.
  • NEWPID: Isolate Process IDs.
  • NEWUSER: Isolate User and Group IDs. A user can have root privileges ($UID 0$) inside the namespace but be a standard, unprivileged user on the host.
  • NEWNET: A Isolated Network stack.
  • NEWCGROUP: Isolates the Control Groups.

They can be seen on the Bundle specification:

  "linux": {
    "namespaces": [
      {
        "type": "pid"
      },
      {
        "type": "cgroup"
      }
    ],
  }

This tells which flags the runtime should include on the clone() call action. While Namespaces provides the isolation (what I can see), CGroups provides the how much can I use, which is what we are about to see.

Control Groups #

‘CGroups’ is a huge matter which is worth its own article; But the general idea is that ‘CGroups’ is the convention the Linux Kernel uses in order organize/manage how much of the computer (%) a process and it’s childs can use as well as some metrics information; It has two flavors: v1, and v2 which is the one I will be focusing on.

Following the philosophy of Linux where ‘all is a file’, CGroups is an hierarchy of folders and files which can be rougly found on /sys/fs/cgroup/docker/container-alpha/ for example. Each process receives it’s own ’tree’ of CGroups, but still keep itself inside the global CGroup tree, the v2 specially is a more ergonomic solution, once its organization it superior compared to v1. Without CGroups, one container could consume all the RAM on a host and crash other containers (the “noisy neighbor” problem).

CGroups stays as home-work for search :^). Next: Capabilities.

Capabilites and (Seccomp) #

Capabilities is what the process is allowed to do, it includes open a network port inside the process, modify a file, delegate permissions to other users, etc… They spec look like this:

"capabilities": {
      "bounding": [
        "CAP_AUDIT_WRITE",
        "CAP_NET_BIND_SERVICE",
        "CAP_KILL"
      ],
    }

Examples #

  • CAP_AUDIT_WRITE: Allows the process to write records to the kernel’s auditing log. (Used by services that need to report security events).
  • CAP_NET_BIND_SERVICE: This is a big one. Normally, only root can bind to “privileged” ports (ports below 1024, like 80 for HTTP or 443 for HTTPS). This capability allows a non-root process to bind to those ports.
  • CAP_KILL: Allows the process to send signals (like SIGKILL or SIGTERM) to processes that it does not own. Normally, you can only kill your own processes; this gives the process “overseer” power.

Here, we create a definition which says: ‘This process can write, bind to a network service and kill a process’. Capabilities basically breaks the previous idea of “all-or-nothing”, where the process could be either a Root or a Rootless one. The ‘bounding’ specification is one of all the ones capabilities can have; ‘bounding’ acts like a ceiling, where the processes permission can never go beyond what is defined in it, even if an executable demands it.

Seccomp #

Seccomp is a security facility in the Linux Kernel whose acts like a “firewall” for syscalls. It is vital for caontainers because as they host the same Kernel, if some attacker gets to bypass the container isolation, it’s next step is usually exploit a kernel vulnerability. Which is the precise spot Seccomp acts.

For example, a standard web server container has no reason to:

  • reboot(): Restart the host machine.
  • mount(): Mount new filesystems to escape its isolation.
  • kexec_load(): Load a new kernel to bypass all security.

By applying a Seccomp profile, you ensure that even if the application is compromised, the attacker is “boxed” within a very narrow set of permissions.

Networking #

The Network is a special topic on the OCI spec because the spec state itself as a low-level specification, it doesn’t tells how to create the Network Stack. This is up to the runtime to make this design decision. The Network flag is simple and just create an new isolated Network Stack; What makes possible, for example, to create the Docker networks with it’s own names and features.

The Where #

The configuration is applied by the Host to the target container, that’s why some runtime actions requires root, for example. The workflow is basically this:

Note: There are rootless runtimes too! Like Podman, which doesn’t need extra permissions in order to work.

The host process is cloned by the runtime, after that, the runtime configures the environment from outside the container. Note that the container’s process might need to configure itself, once the host original process is detached from it (while still on a ‘Parent-Child’ relationship); After that, the container process generally performs a execve call, what effectivelly gets the binary specified at config.json running.

Container Managers #

As a conclusion, it is pretty valid talk about the called ‘Container Managers’ (which is different from Container Orchestrators!!) like Docker Compose; These tools are a convenience to us so we don’t need to manually configure Network Port Binding, manually name the Containers, etc… They generally work by an external process, and are completely different applications from the containers. which can parse an config file (i,e. docker-compose.yml) and work by building and executing the runtime with certain commands and in certain order to build the entire environment.

  • Runtime: Building and running a single container. e,g. Dockerfile.
  • Manager: Managing a multi-container app on one host. _e,g. docker-compose.yml.
  • Orchestrator: Managing containers across a cluster of servers. Kubernetes - e,g. manifest.yaml

Containers #

Containers are really great tools which can be used in infinite ways and situations and solves a lot of problems, it is hard to quote some applications because all of them happens to fallback into the idea of being a ‘boxed Linux environment’. Linux Containers furthermore of being the most used ones are not the unique type of containers, there are Windows and Apple Containers too; Every environment which can be boxed into this convenient configuration of ’executable environment’ (even if its different from OCI spec) is a Container.

And we are done :^). Thank you for reading this article, hope it has helped you to understand these mysterious concepts; Feel free to lay some comments below. Hope to CYA (!!)
